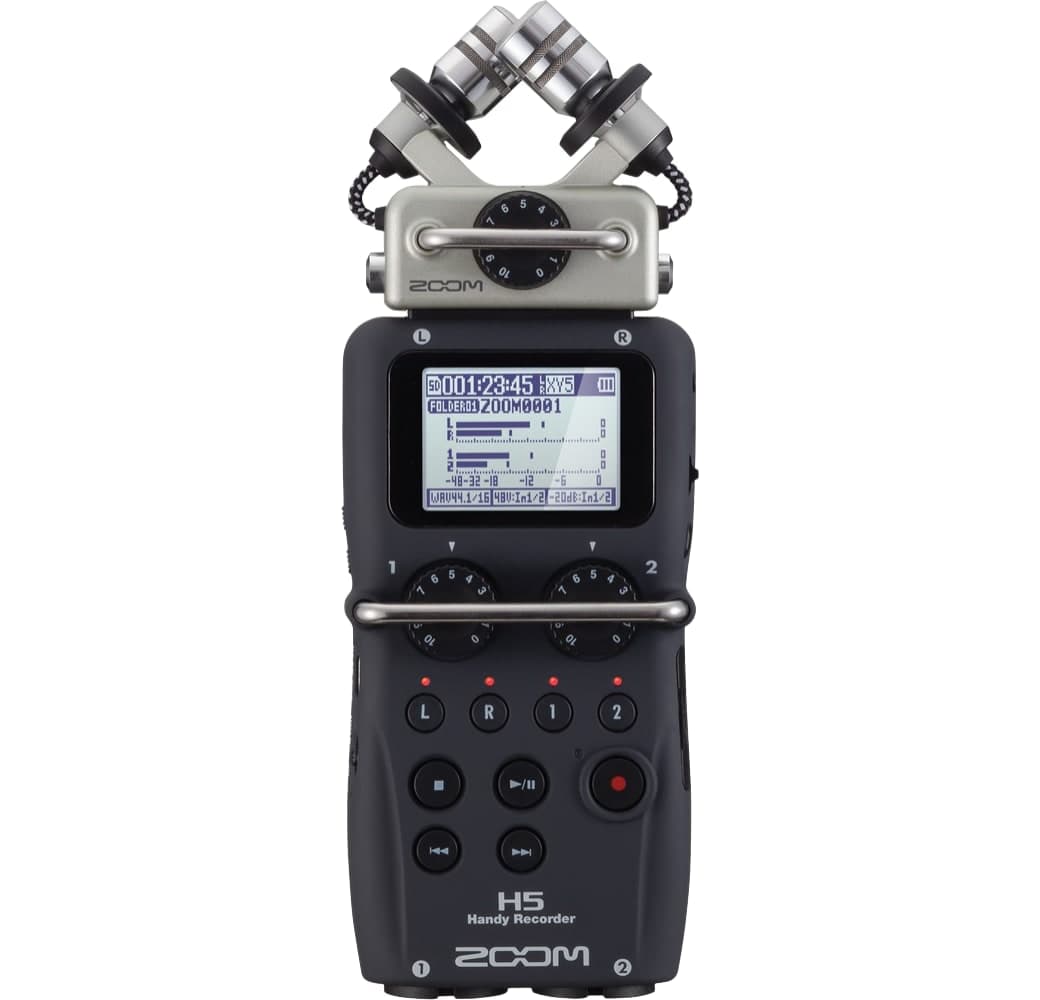

Zoom H5 Portable MP3 / Wave Recorder

Type

Portable MP3 / Wave Recorder

Model

H5

Connections

2 mic/line inputs with XLR/TRS combo connectors. USB port.

Connectivity

-

No of channels

-

Operating mode

2 AA batteries, NiMH rechargeable battery packs, USB cable or AC adapter (not included)

Special features

Uses a system of interchangeable microphone capsules. Includes detachable X/Y capsule (XYH-5). Compatible with all Zoom input capsules. Records up to 24-bit / 96 kHz. Recording format: WAV (BWF compatible) and MP3. 4-track simultaneous recording. Large backlit LCD display. Records directly to SD and SDHC cards up to 32 GB. 2 mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB pad. Gain control knob on each input, with protective 'roll-bar' that prevents accidental movement during handling. Built-in effects, including high-pass filter, compressor and limiter. Chromatic tuner and metronome. Auto-record, pre-record and backup-record functions. M/S decoding. Multitrack to stereo internal mixdown. Normalize, divide, and trim editing. A/B loop playback. Integrated loudspeaker. Variable playback speed and pitch (without tempo change). Multichannel and stereo USB audio interface for PC, Mac and iPad (requires optional camera connection kit). 1/4 - inch attachment screw-hole on the back side.

Included Accessories

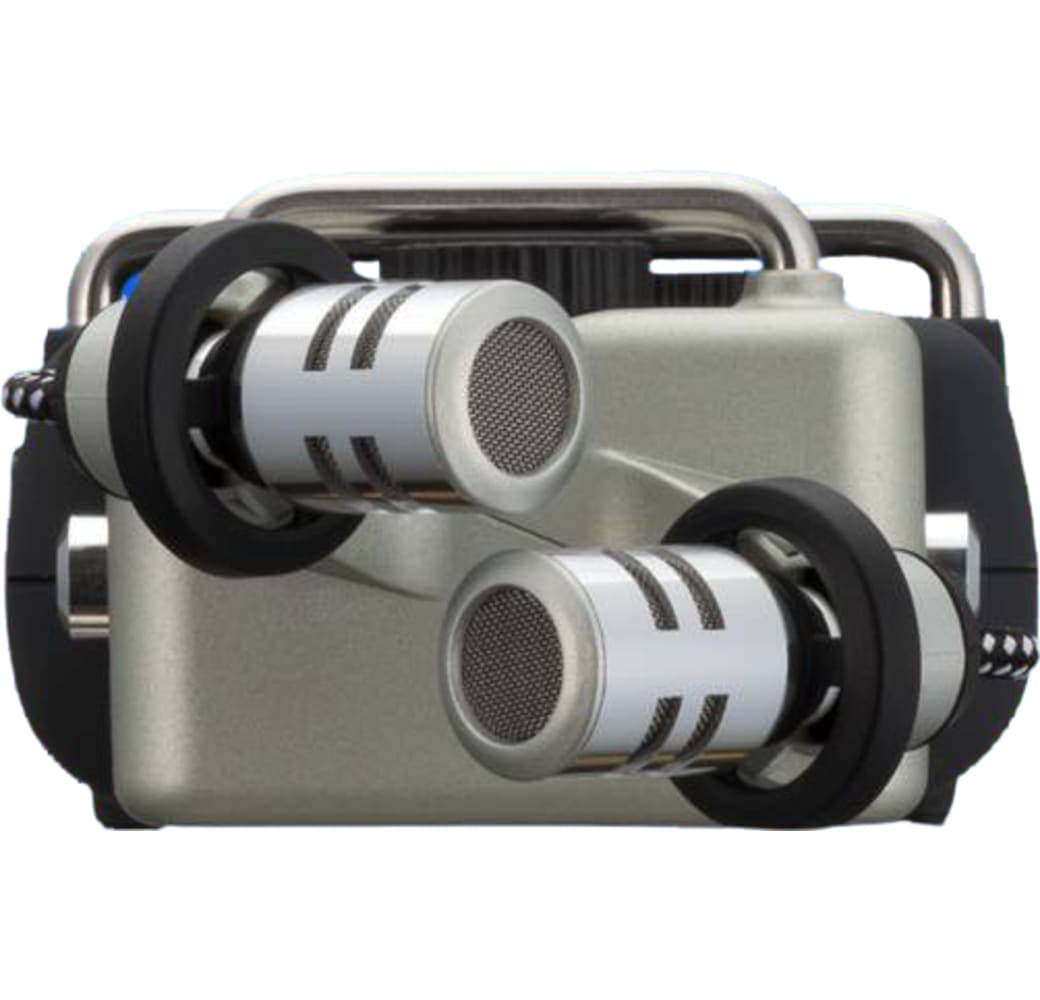

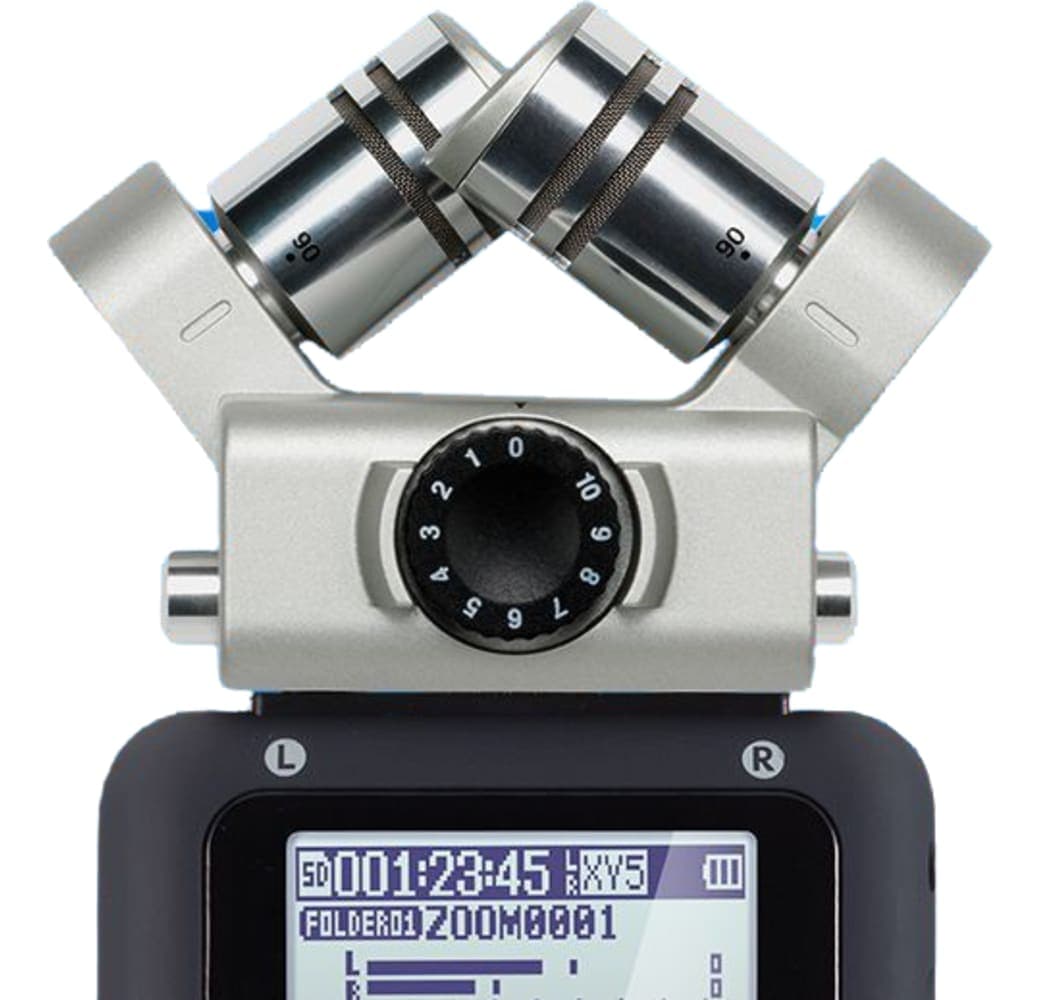

XYH-5 X/Y microphone capsules, USB Cable, Foam windscreen, Case

Intelligent features

-
